AIMS Power 3600 Watt Power Inverter GFCI ETL Certified Conforms to UL458 Standard PWRINV360012120W PWRINV360012120W

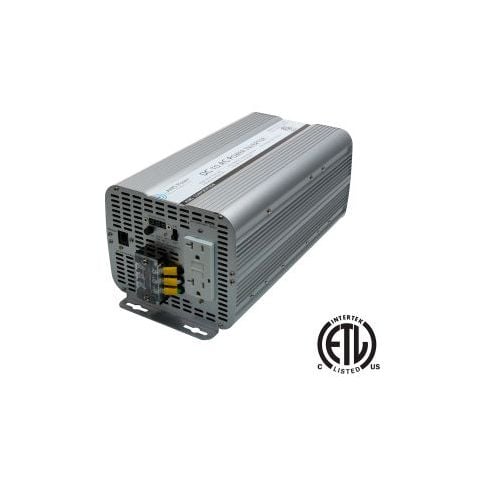

AIMS Power, 3600 Watt Power Inverter

This 3600 Watt Modified Sine Inverter has a few unique features. First, the unit is ETL Listed and conforms to UL 458 Standards. The AIMS 3600 Watt also conforms to CSA Standard C22.2 No. 107.1-01. Canada. At AIMS Power, we listen to our customers and as a result, AIMS designed this 3600 Watt UL listed modified sine inverter with our customers in mind.

AIMS has produced a high quality unit that is also available in two other sizes 2000 and 3000 watts. It features a 20 amp GFCI outlet. That is exactly like the outlets you find in your bathroom and are able to be reset if they "pop" for safety. This inverter also has a direct connect AC terminal block, which delivers the full 3600 watts to a single source. The compact design is lightweight and durable, taking up less space in your work environment.

Ideal for back-up power systems for homes, boats, cabins, solar, vehicle outfitters and other OEM type applications that require a UL 458 listing. AIMS offers several UL products.

Features:

• 3600W max continuous power
• Modified sine wave
• Digital Display
• LED Monitoring Lights
• Dual GFCI Outlet
• AC Direct connect terminal block
• Over Temperature protection
• Over Load protection
• Thermal Cooling fan operation
• Internally fuse protected
• ac output short circuit protection
• Aluminum case for optimal cooling
• Pre-slotted mounting plate
• Instruction manual
• Free tech support
• 2 Year Warranty Parts and Labor

SPecifications:

• Surge power capability (peak power): 7200 Watts
• dc input / operating voltage: 10 to 15 Volts
• Output voltage: 120 Volts ac
• Output frequency: 60 Hz +/1 .5 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10.0 +/- 0.5 V
• No load minimum
• operating temperature: 25° F
• Full load maximum operating temperature: 140° F (automatic shutdown)
• Efficiency: 90%
• No load draw: <2.0A
• AC amps: 30
• DC amps: 300
• AC Output Socket Type: dual GFCI and AC direct connect terminal
• High input voltage protection: 15V
• Low input voltage shutdown: 10V
• Product size (L x W x H): 14.5" X 6.62" X 5.6"
• Weight: Unit: 9.04 lbs Boxed: 12 lbs
• ETL Listed to UL458 Standards - CSA 22.2
